SPECIFICATIONS

Application: Hospital ICU Home Clinical
Brand Name: Sinohero
Certification: CE
Display: 3.5" TFT Color LCD Display
Hign-concerned Chemical: None
Is Batteries Included: Yes
Model Number: SM50
Origin: CHINA
PR: 20~254bpm
Parameters: SPO2 NIBP TEMP PR
SPO2 Range: 0%~100%
Temperature Measurement Range: 0°C-50°C
Type: Examination Therapy Equipments
Use for: Adult Neonatal and Pediatric
name: SM50 VET Handheld Vital Signs Monitor

Introduction:
SM50 is a multi-functional hand-held patient monitor that can monitor SpO2, NIBP TEMP PR at the same time. the device is widely applicable to hospital wards, community clinics, Fimily and other medical institutions.

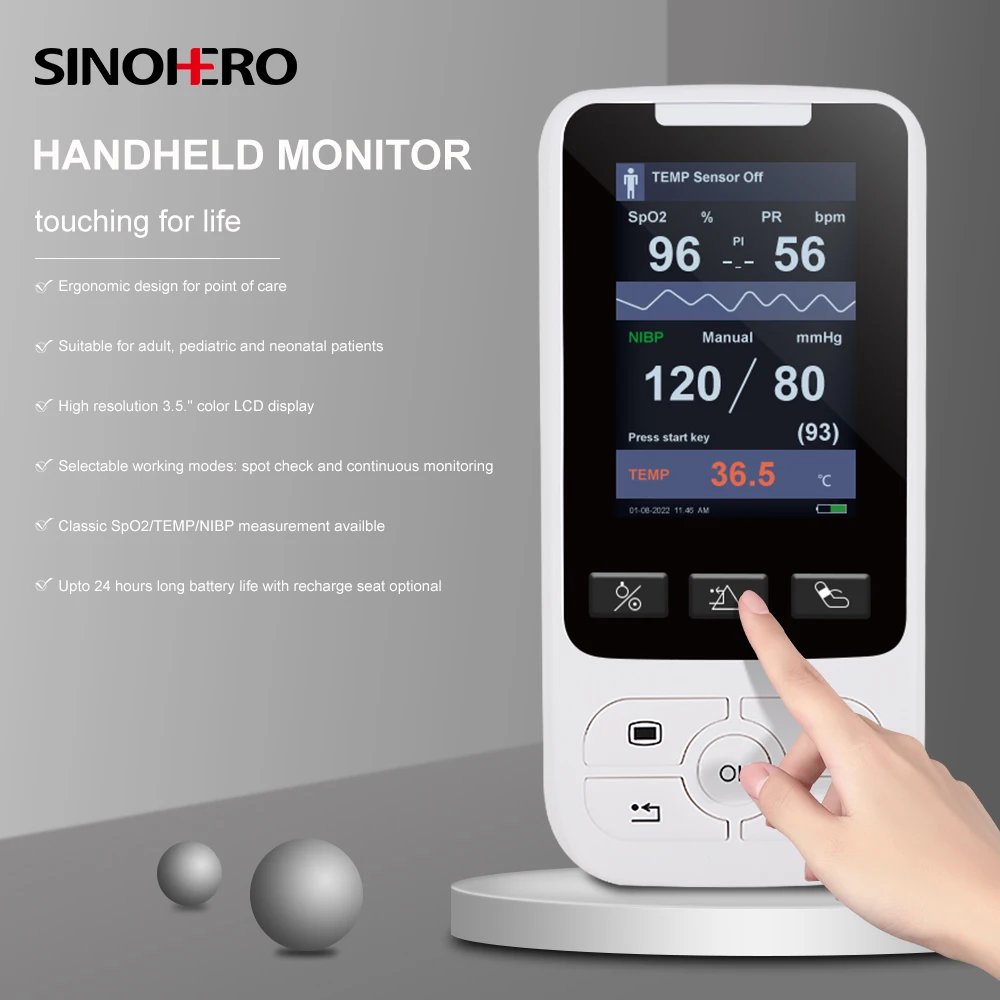

Feature:
●Ergonomic design for point of care
●Suitable for adult, pediatric and neonatal patients

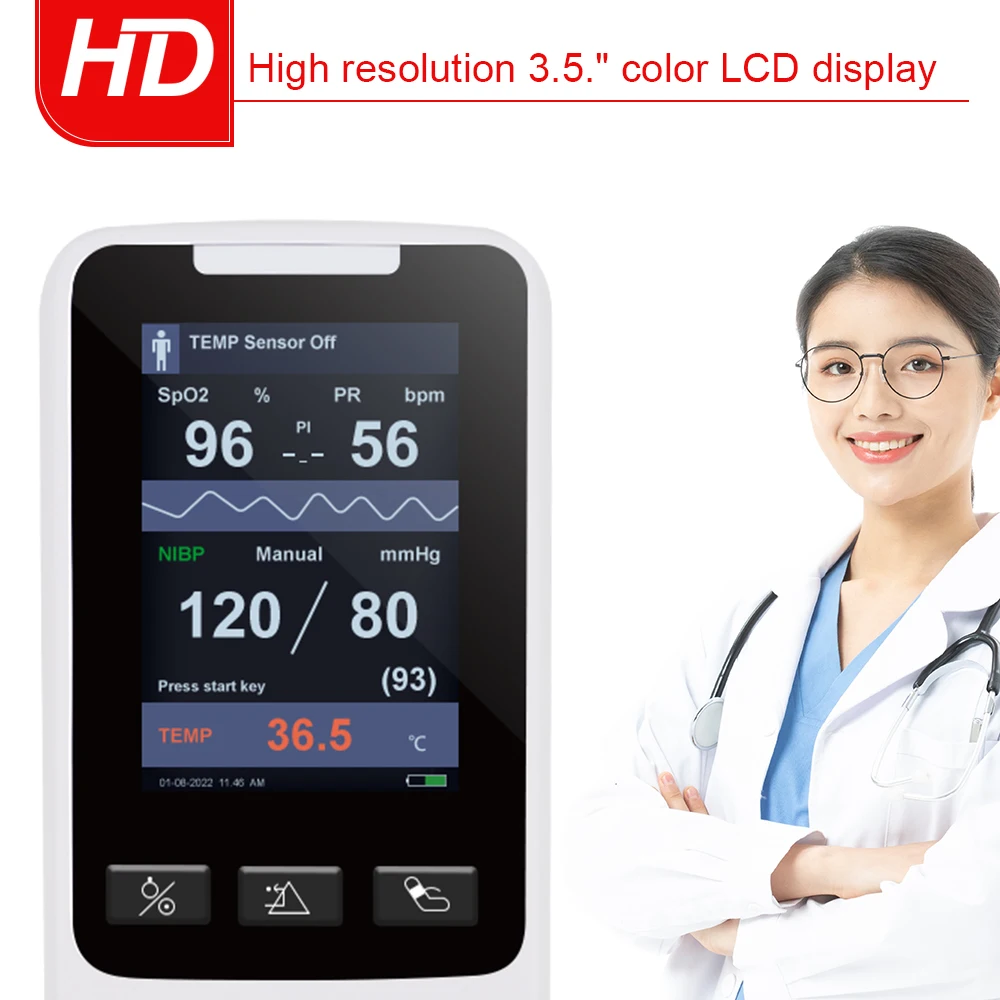

●High resolution 3.5." color LCD display
●Selectable working modes: spot check and continuous monitoring
●Classic SpO2/TEMP/NIBP measurement availble

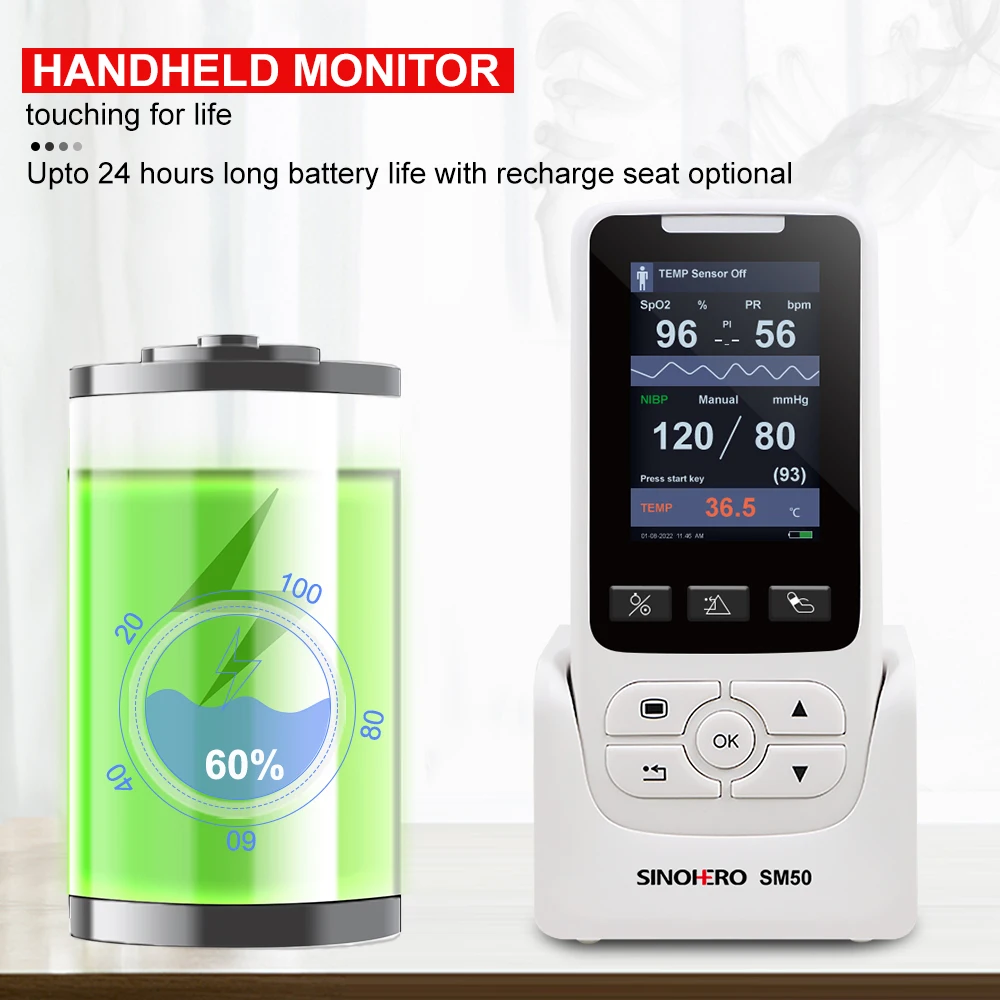

●Upto 24 hours long battery life with recharge seat

Technical Specification:
Standard SpO2
●Accuracy:70% to 100%: +2%, unspecified 0% to 69%:
●Range:0-100%
●Alarm Range:Same as display range, alarm limit setup length is 1%

PR
●Range:20bpm ~ 254bpm
●Alarm Range:Same as display range, alarm limit setup length is 1bpm
●Refreshing Rate:About 1 second
●Accuracy:+3 bpm
●PR Average: 8 second
●Pitch Tone:Yes

TEMP
●Accuracy:+0.2°C (0°C~ 50C)
●Range:0°C ~ 50°C
●Alarm Range:Upper limit 0.1C ~ 50.0C, Lower limit 0.0C~ 49.9C
●Unit:°C or°F
●Alarm Delay Time:<10s

Battery
●Input Power:100-240 VAC,0.4A,50/60Hz,+10%
●Type:Lithium ion .
●Capacity:3.7V/4000mAh
●Working Time:Brand new battery with fully charged≥24 hours
●Charging Time:Around 8 hours

I/O
●Display:3.5" LCD 480*320 pixels
●Buttons:3 shortcut keys, 5 function keys

Communication Interface
USB .

Environmental Specification
●Temperature:0C~ 40C
●Humidity:15% ~ 80%, Non - Condensing
●Patients Range:Neonatal, Pediatric, Adult

NIBP
●Method of Measurement:Oscillation
●The Measured Parameters:SBP, DBP, MAP
●Unit:mmHg or kPa
●Operating Mode:Manual, automatic, continuous
●SBP Range:
Adult(30 mmHg ~ 270mmHg)，Child(30 mmHg ~ 230mmHg)
●DBP Range:
Adult(10 mmHg ~ 220mmHg)，Child(10 mmHg ~ 165mmHg)
●MAP Range:
Adult(10 mmHg ~ 240mmHg)，Child(10 mmHg ~ 175mmHg)
●Accuracy:+5mmHg or +4%, whichever is the greater
●Range:Same as display range, alarm limit setup length is 1mmHg
●Alarm Delay Time:<10s
●Cuff Pressure Range:0 mmHg ~ 300 mmHg
●Cuff Inflation Speed:Cuff Inflation Speed≤50mmHg/s
●Static Pressure Measurement Error:+3mmHg (not up to over pressure protection)
●Display Resolution:1mmHg
●Standard Parameter:Standard SpO2, Pulse Rate, Plath bar & SpO2 Waveform, Rechargeable Lithium Battery, Battery Charging Seat
●Optional:
NIBP Function and Accessories, TEMP Function and Accessories


Physical characteristic(Mechanical)
●Size:175mm(h)X85mm(w)x32mm(d)
●Weight:Single SpO2 version 280g, SpO2+NIBP+ TEMP version 370g

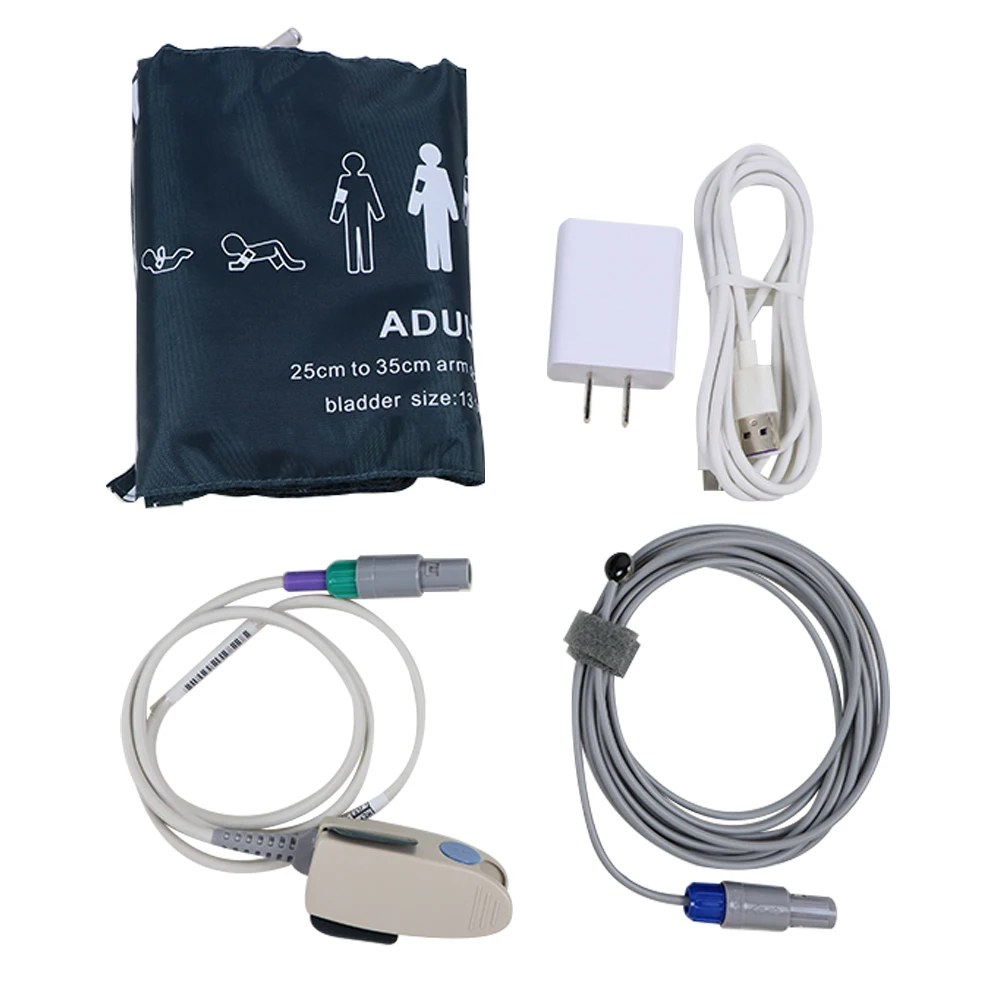

Package included:
1XSM50 SPO2 patient monitor
1X Adult SPO2 probe
1X Adult NIBP Cuff
1X Temperature Probe
1X Charging stand
1X Charger
1X User manual
