SPECIFICATIONS

Advantage: No need to complicatedly wire, easy to install
Average Life (hrs): 50000
Brand Name: FOB COB
Certification: ce,FCC,GS,LVD,UL
Color Temp(K): 3000k 4000k 6000k
Feature: Can step by step control
Hign-concerned Chemical: None
Is Batteries Included: No
Is Smart Device: No
Item Type: Strip
LED Chip Brand: SANAN
LED Chip Model: SMD2835
LEDs Number/M: 480
Luminous Flux: 2000-82000
Model Number: Controller-Step-05/09-KIT
Occasion: bedroom
Origin: Mainland China
Power Consumption (W/m): 8.64W/m
Power Generation: Motion
Power Source: DC
Product name: Stair Light Motion Sensor Kit
Specifications (light beads / m): 480
Strip type: COB
Voltage: 24 V
Waterproof: No

Note before buying:

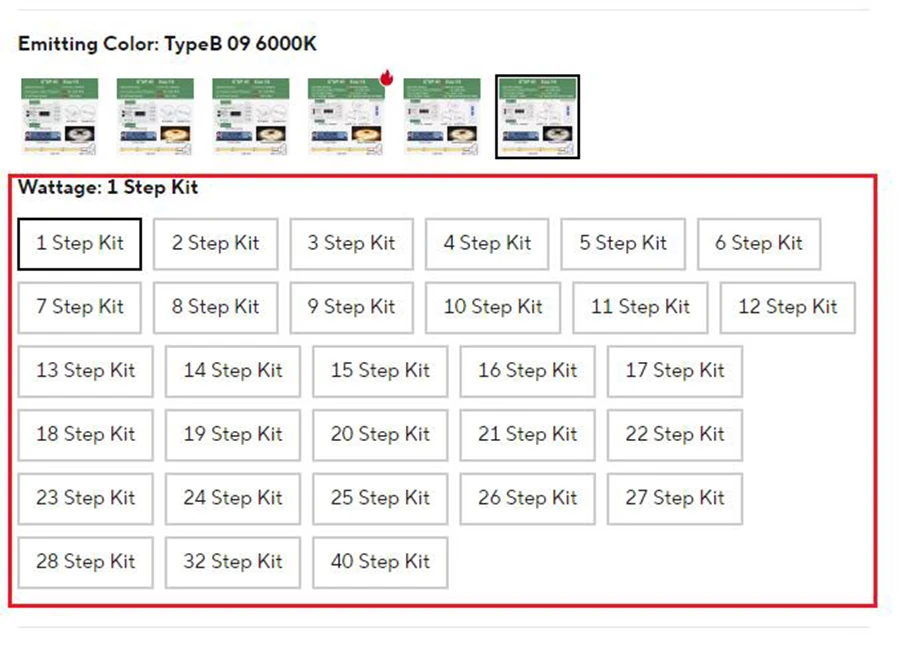

Please note the step options on the purchase page, you must select the kit with the same number of Stair steps as you have!

Product description
Product Name: Stair Motion Sensor Switch
Voltage: DC12V / DC24V
Max current: 10A
Power: each step<15w  total<240w (DC12V /120W; DC24V/ 240W Max)
Sensors: 2 PIR Sensoron both sides
Special function: 4PIN main wire for Max 99 steps  Delay Time/Speed / dimmable Lights and 12 Model
PIR Sensor: fixed mounted or recessed mounted ( Dia 15mm only )
Features: there's a main line cable to conect all strips, no need complicate wiring
Advantage: can control the led strip light step by step

Package Included:
1x Controller
1x 16-step or 20-step main line cable
2x PIR sensor (1 meter)
1 batch of tools and accessories
LED strip and power supply need to choose

NOTE:
This controller does not have the function of lighting on both sides of the stairs.

1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.
2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3- The product is not waterproof.
4- Don't make the +/- pole reversed, or the controller can't work.
【Important Tips!】
Please install the led strips on the main cable at first, after the led strips are all installed, then connect power supply!
Please DO NOT install or take off the led strip when the controller is powered on. This is easy to get the main cable burnt!
How To Use
1. Setting
Long press“Setting" to set Step Numbers, Brightness, Time Delay, Speed, Mode
Short press to“Setting" to enter next setting
