SPECIFICATIONS
Brand Name: SMALL DEN
Certification: CE,FCC,RoHS,KC,weee,None
Data Transmission: Other
Display screen: No
Intelligent Charge: Yes
Model Number: 42-84V 2-5A
Origin: Mainland China
Output current: 2A 3A 5A
Package: Yes
Quick charge: Yes
Type: Electric
Use: Lithium ion battery
frequency: 50Hz-60Hz
input plug: US-EU-AU-UK
output voltage: 100-240V

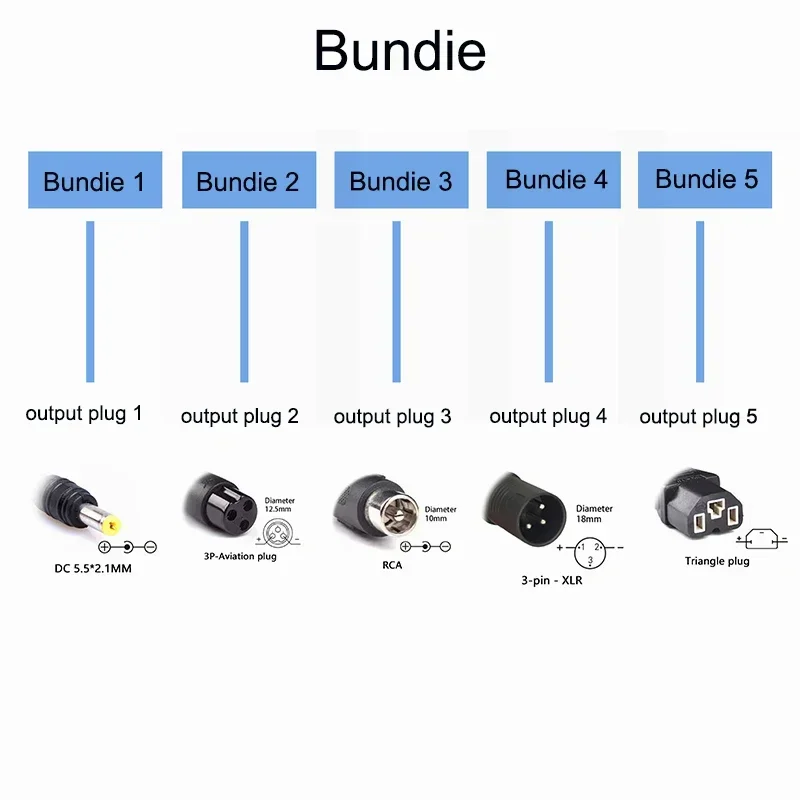

About Bundle explain details :
The Bundle simply stands for an output plug and does not mean anything else.
Bundle 1 is DC:5.5*2.1/2.5mm ouput plug.
Bundle 2 is Aviation-GX16 12.5mm(1+,3-) output plug
Bundle 3 is RCA 10mm ouput plug
Bundle 4 is 3-pin-XLR 18mm output plug
Bundle 5 is Triangle output plug
36V 48V 52V 60V 72V 2A 3A 5A charger 10S 13S 16S 20S lithium battery 42V 54.6V 58.8V 67.2V 84V 2A 3A 5A intelligent fast charging DC/Aviation/RCA/XLR/Triangular output plug EU/US/AU/UK input plug 100~240V AC, 50/60Hz
Product Specifications
Type: lithium battery charger
Model: 42V/54.6V/58.8V/67.2V/84V-2A 3A 5A
Input: 100~240V AC, 50/60Hz
Output: DC/Aviation/RCA/XLR/Triangular
Charging current: 2A/3A/5.0A ± 0.3A
Repair current: 600mA-800mA
Trickle charging: 170mA 30mA
Shell: plastic
Color: black
Plug: EU/US/AU/UK
Recommended capacity: 8AH~60AH
Charging indicator: charging red light all green light
Safety protection: OVP/OCP/overload protection/short-circuit protection
Package includes:
1.42V/54.6V/58.8V/67.2V/84V 2A/3A/5A lithium battery charger * 1
Protection characteristics
1. Short circuit protection
2. Over current protection
3. Overvoltage protection
4. Reverse polarity protection
5. Overheating protection
When the internal temperature is more than 85 ℃, it will stop automatically; When the temperature is lower than 75 ℃, it will open automatically.
Operating conditions:
Ambient temperature: - 5-40 ℃
Relative humidity: 5-95%
Maximum altitude: 10000m
Storage conditions
Ambient temperature: - 40-70 ℃
Relative humidity: 0-95%
Highest altitude: 20000 meters. seven hundred and eighty-seven

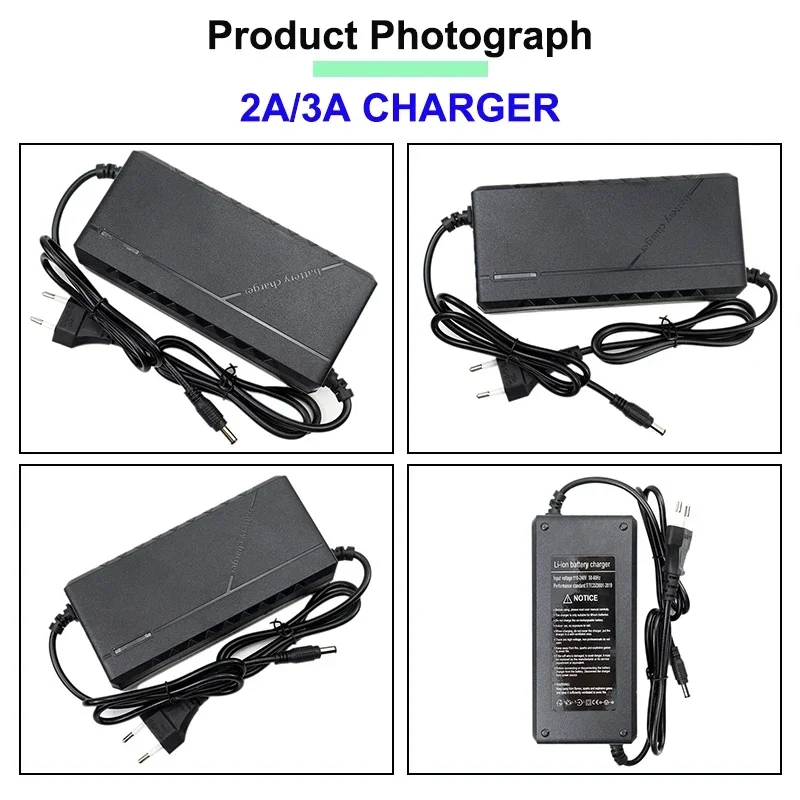

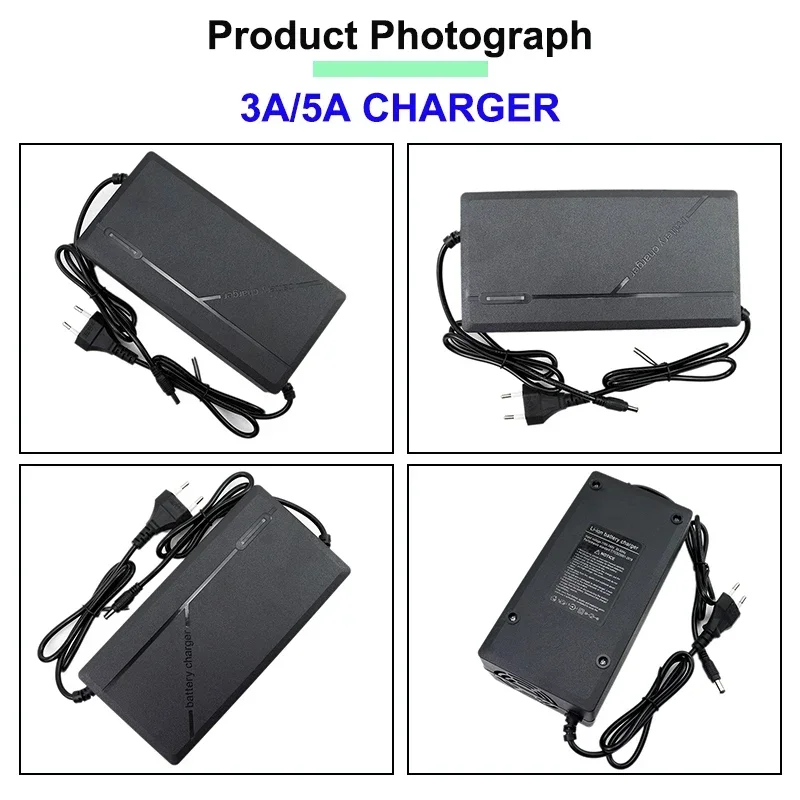

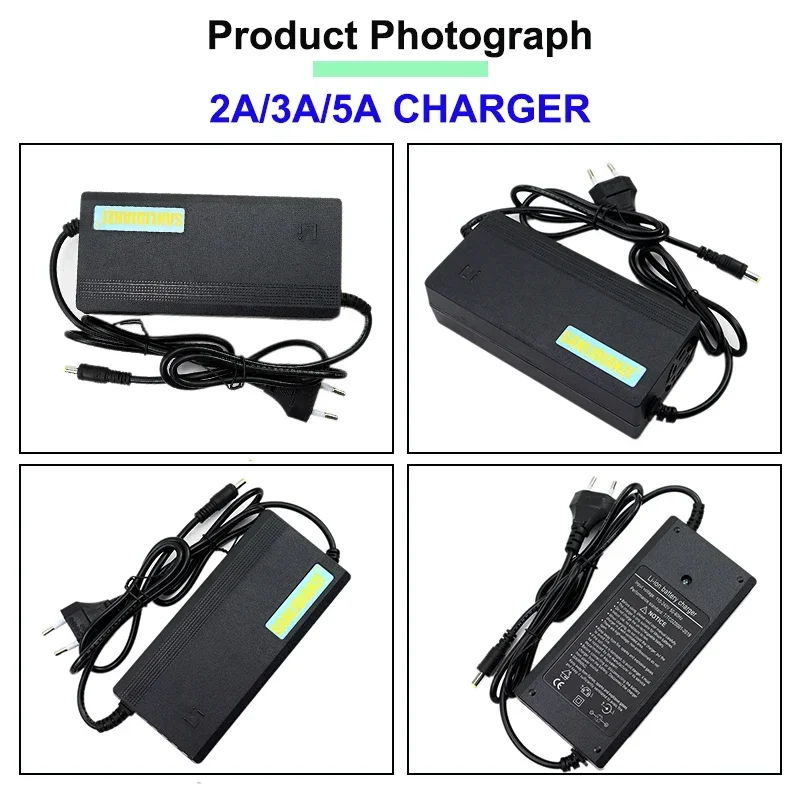

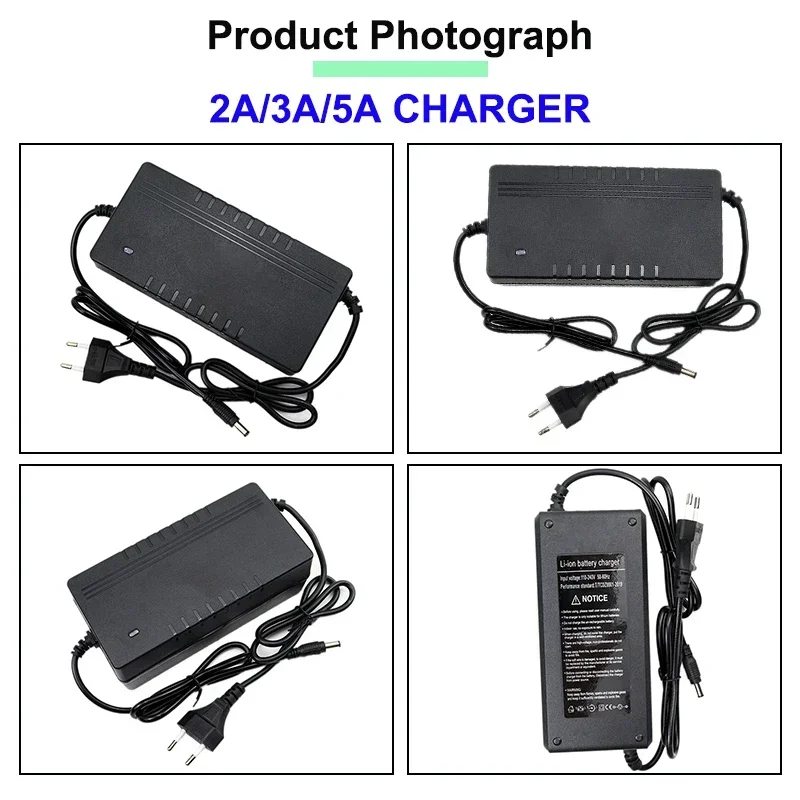

Product appearance

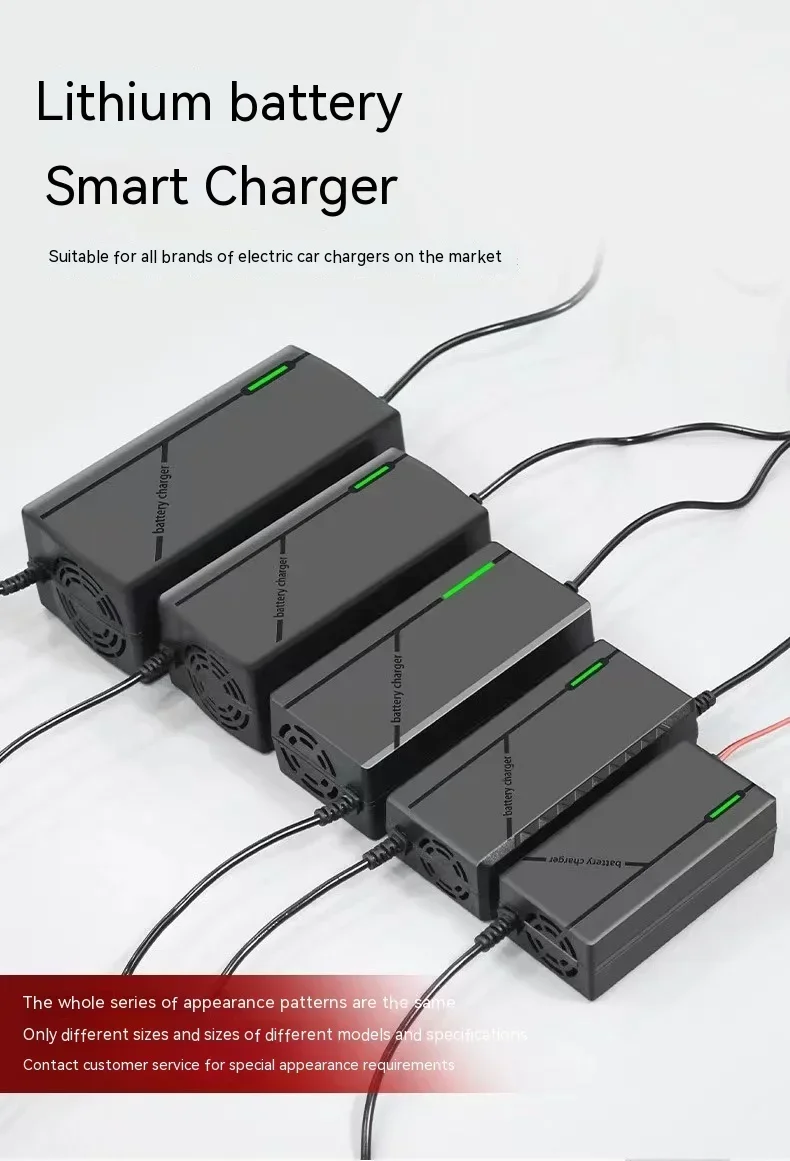

Since there are many types of chargers, the appearance of the chargers sent may vary from time to time. The actual parameters are consistent with those advertised. Thank you for your understanding!
Product Details

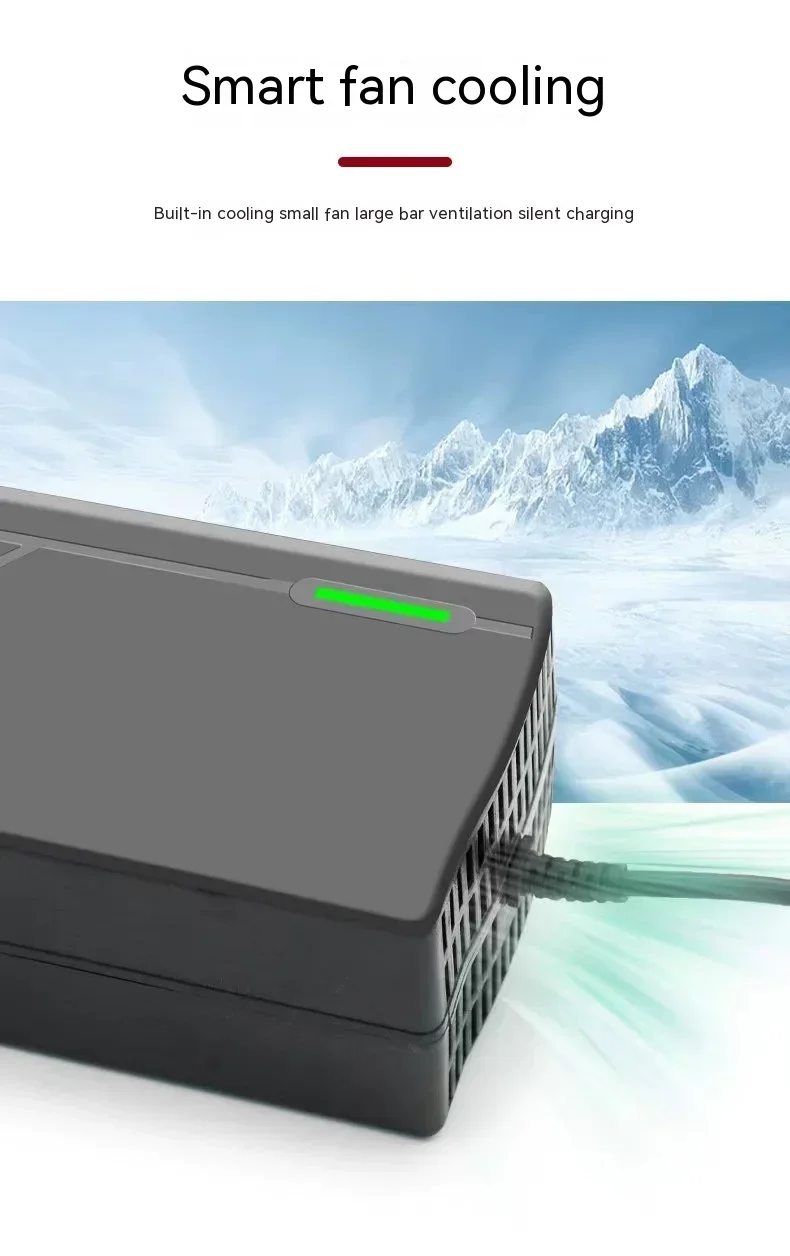

Double sided cooling hole, more comfortable charging and constant temperature

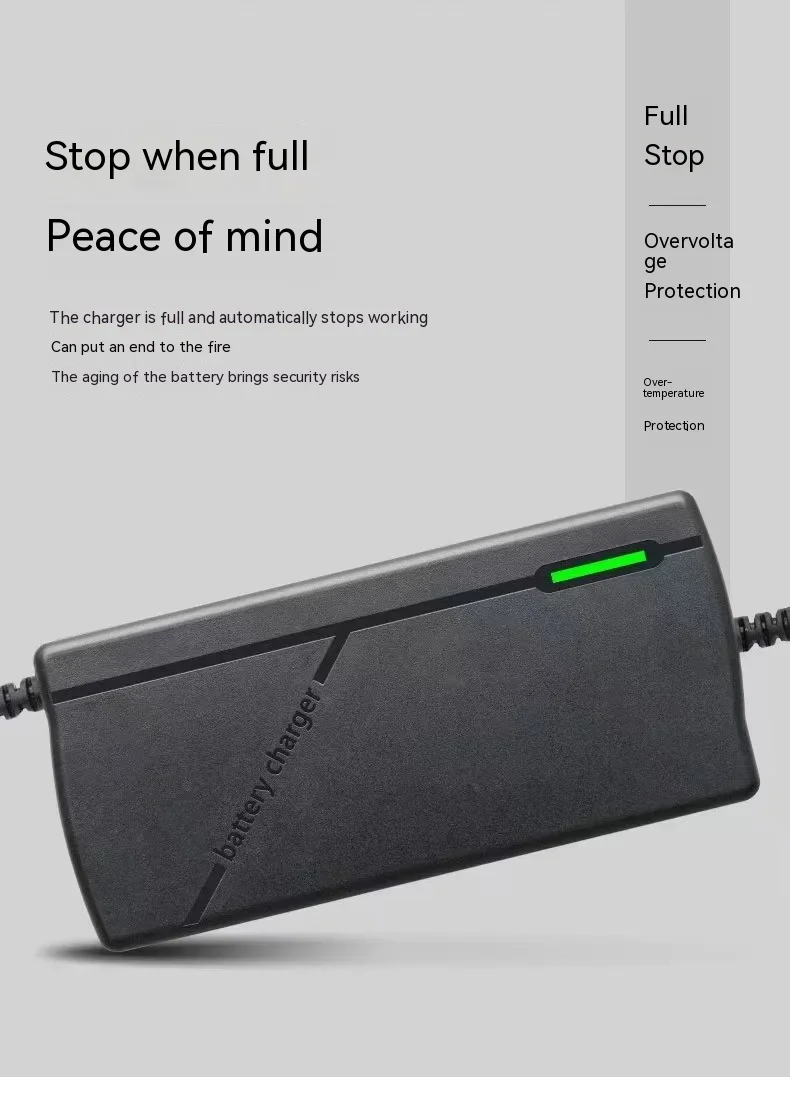

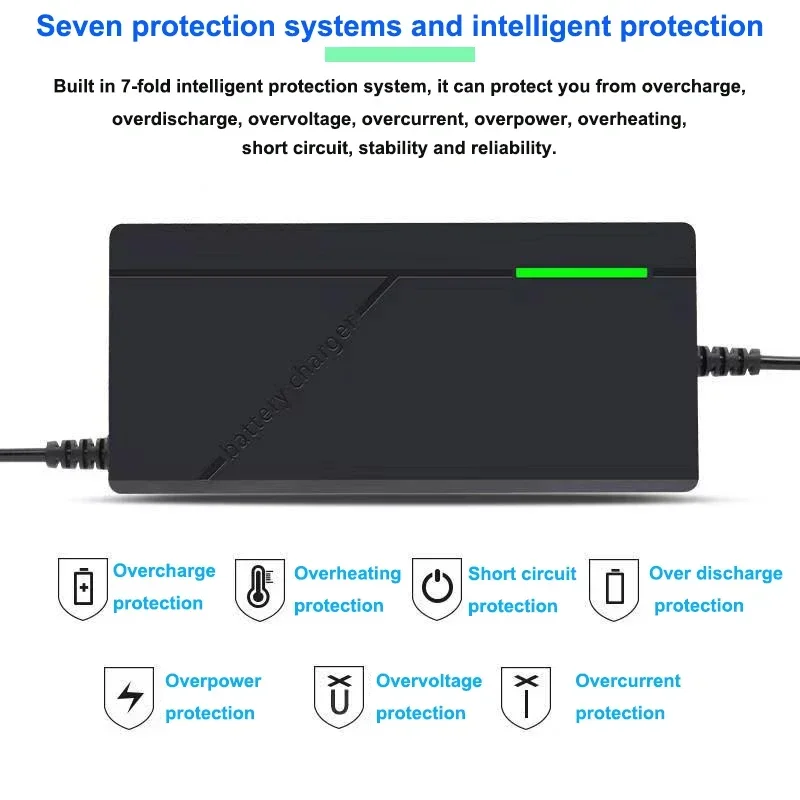

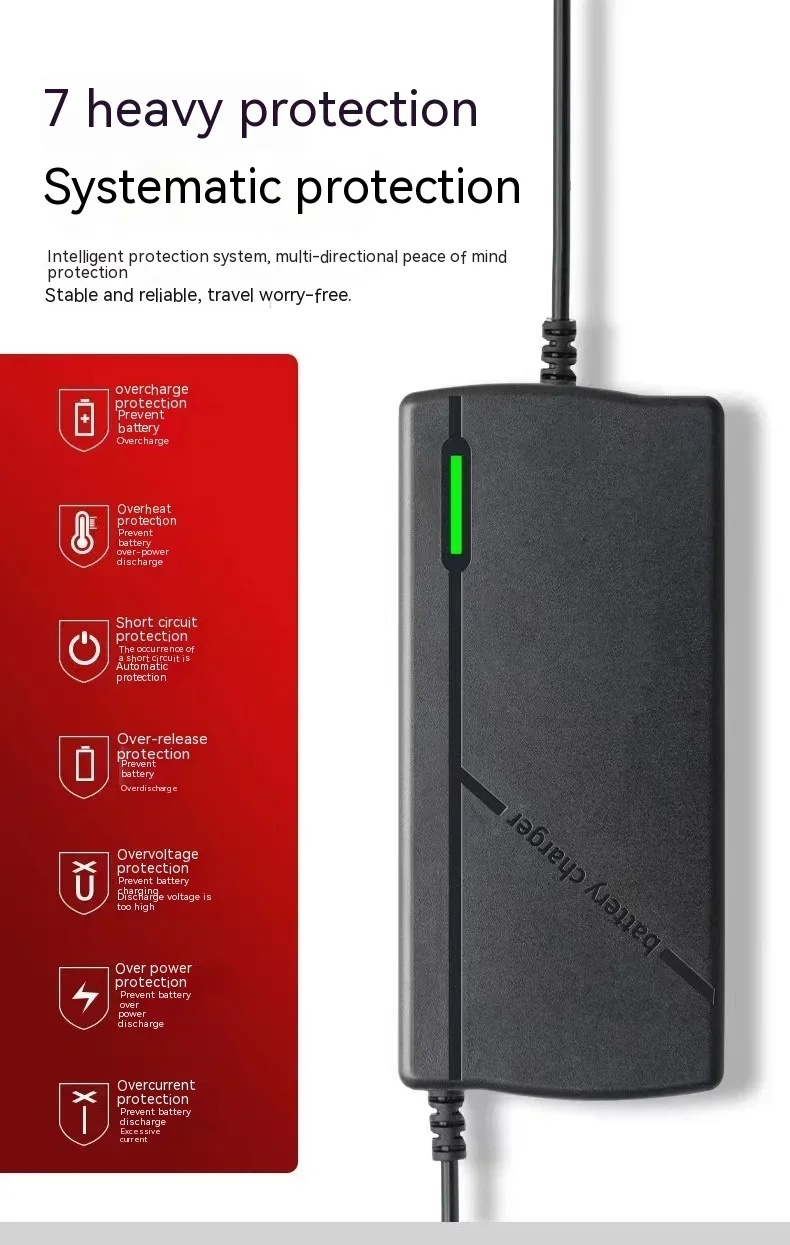

7 protection systems and intelligent protection
Overcharge protection, overheat protection, short circuit protection, overdischarge protection, overpower protection, overvoltage protection, overcurrent protection
Smart chip, multi-layer protection
Components are from big brand suppliers
Stable performance to meet more requirements

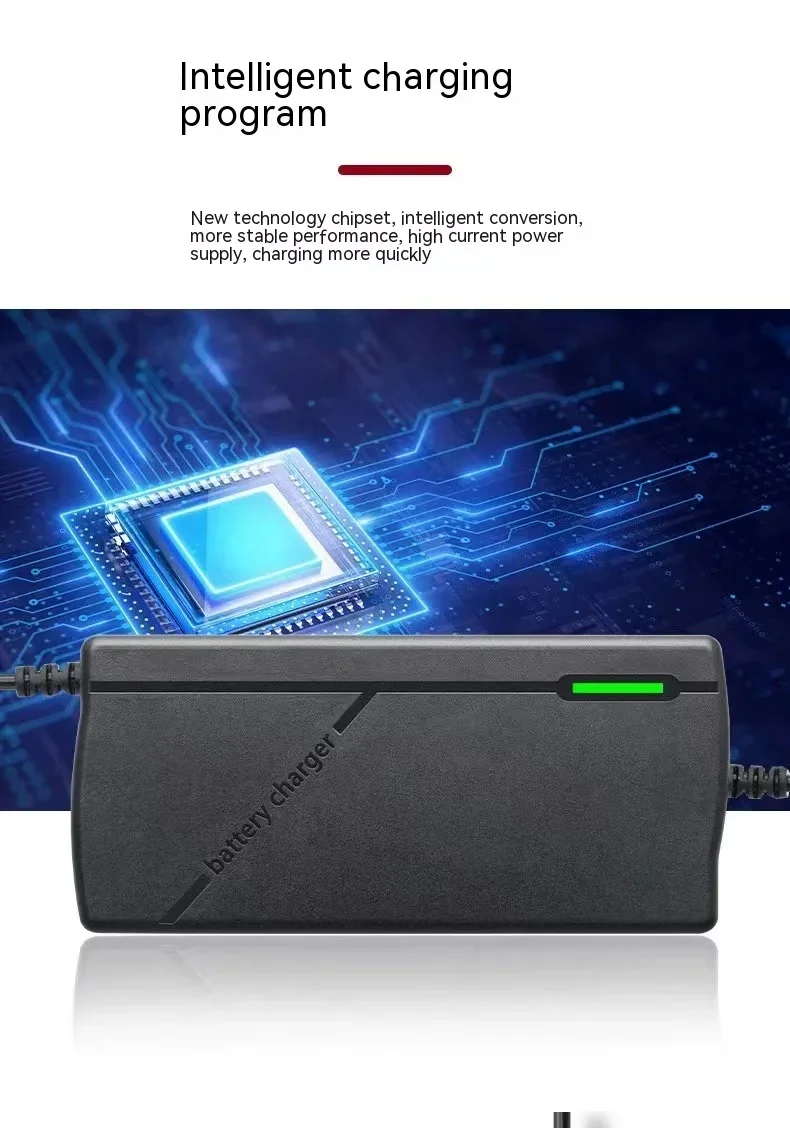

New technology chipset, intelligent conversion, more stable performance, high current power supply, faster charging
