SPECIFICATIONS

AI Functions: Motion Detection
APP: Support for mobilephone monitoring(iOS,Android)AC18Pro
Alarm Type: telefon Alarm,FTP Photo,Email Photo
Audio Interface: Audio 1 input 1 output
Brand Name: WGWK
Certification: CE
Color: black
Connectivity: IP/Network Wired
High Definition: 12.0 Megapixels
Hign-concerned Chemical: None
Installation: Embedded
Lampinterface: CDS,PWMIR,PWM warm light

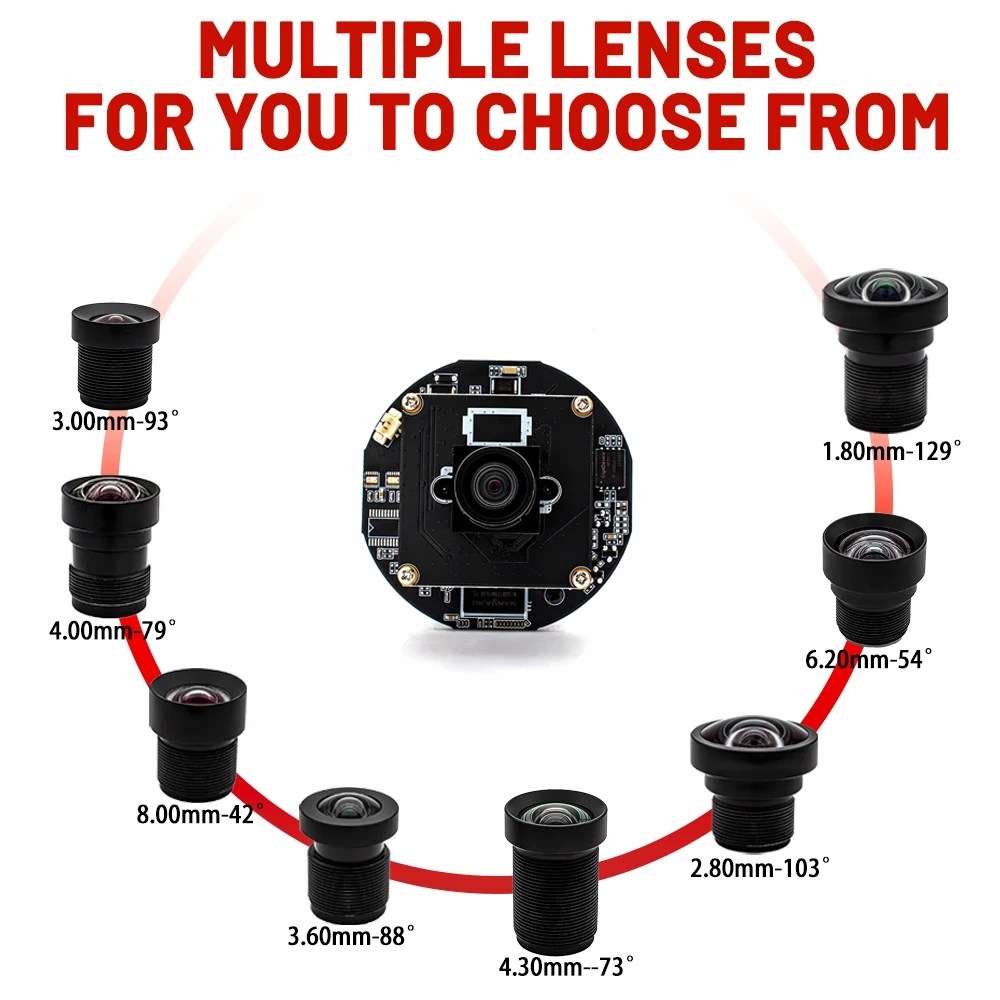

Lens (mm): 2mm,3.6mm,4mm,8mm,2.8mm
Lens Quantity: Single Lens
Main Chip: SSC359 ARM Cortex0A53 1.2GHZ
Main stream: 4000x3000@25FPS
Megapixels: 12mp
Network interface: 1 RJ45 Ethernet interface, 10/100M adaptive
Networking Protocol: Support HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols, optional GB28181, RTMP and a variety of NVR docking protocols;
Operating Temperature: -10°-60°
Origin: Mainland China
Power Source: With Poe,Normal
Power Supply: With Poe

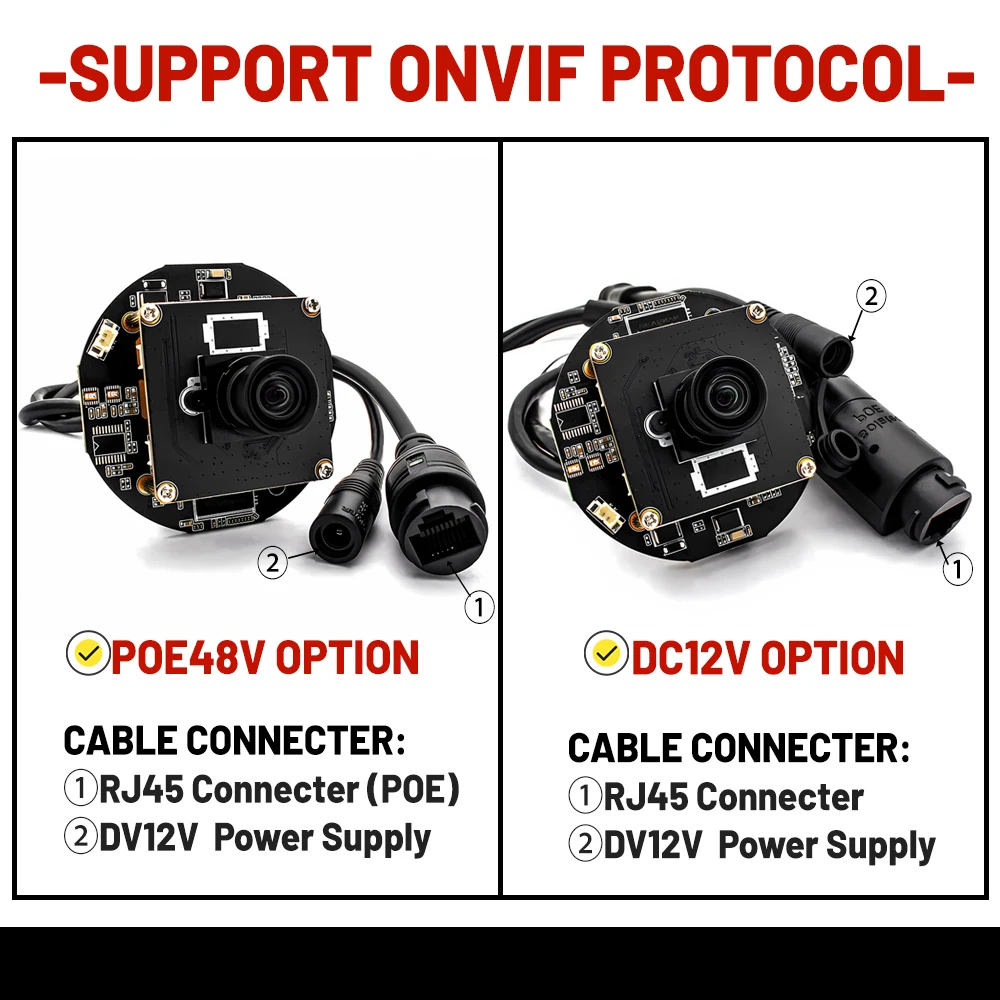

Power(choice): DC12V/POE48V
Reliability: Power supply, network comprehensive lightning protection, in line with the national standard GB/T 17626.5, intemational standard IEC61000-4-5
Scene: Indoor
Sensor: CMOS,1/2.3 inch 12 megapixel black light IMX577 CMOS sensor
Sensor Brand: Sony
Style: Mini Camera
Supported Mobile Systems: Windows Mobile,Android,iOS
Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,Mac OS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
TF Card: None
Video Compression Format: H.265
Video Processing: H.265+/H.265/H.264 video coding,suppord code stream 0.1M-12Mpbs Adjustable; support framerate1-30 frames/s adjustable
Worktemperature: '-40~+85℃
Zoom: None
Zoom type: None
is_customized: Yes

Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.
Aoseer 12MP IMX577 IP Camera Module Low illumination 4000x3000 25FPS Webcam Board Onvif RTSP H.265 With No Distortion M12 Lens
NOTE:
1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter)
2.Due to manual measurement, please allow an error of 2-3mm.

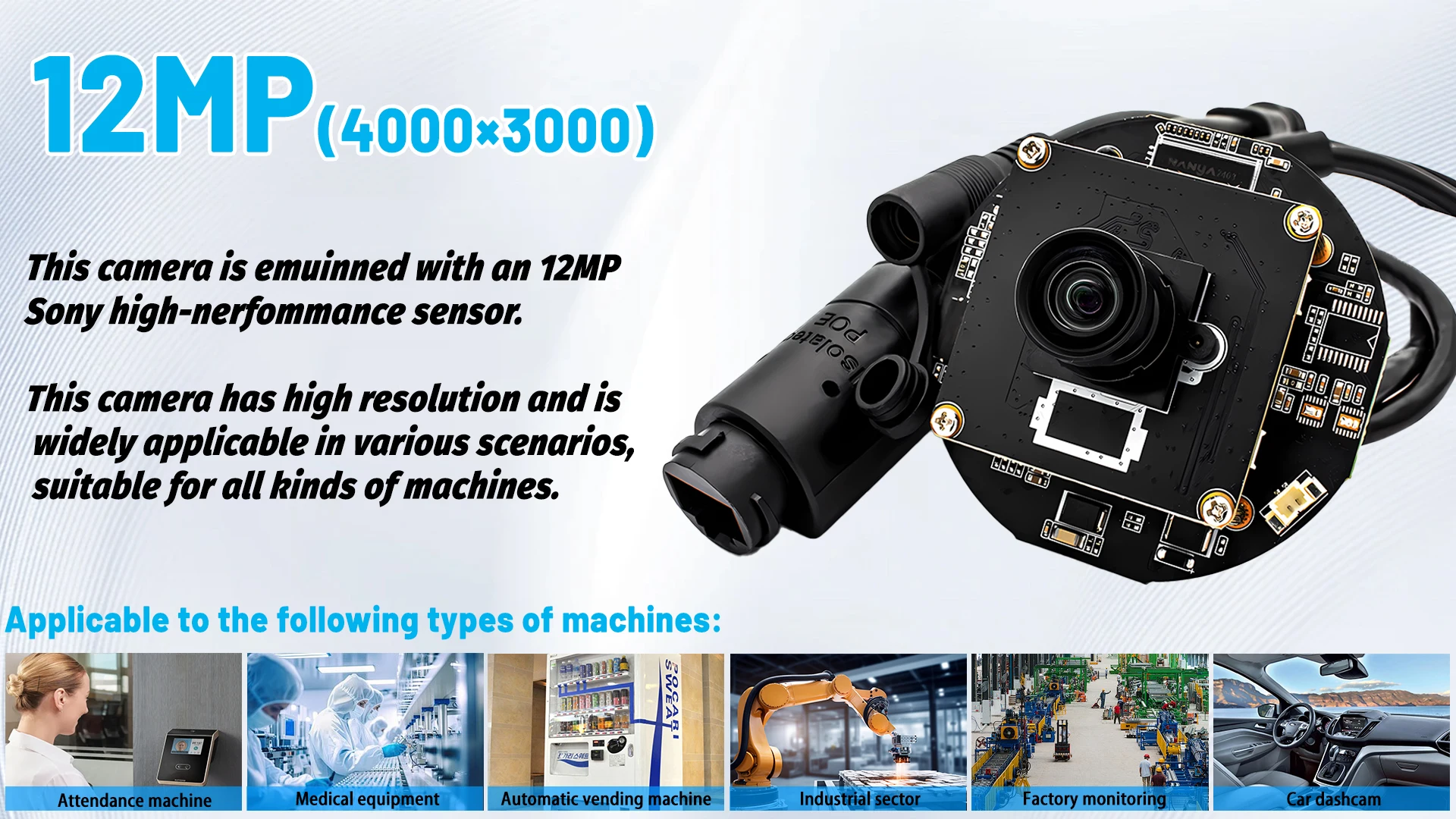

High performance 12MP Sony IMX577 camera module
Bring a professional-grade experience to your imaging applications! Featuring the Sony IMX577 CMOS sensor combined with a wide-angle M12 lens, this camera module is ideal for high-performance imaging.
🔍 Ultra-high-definition image quality:
Resolution: 3000x4000, 12 million pixels (12MP)
Supports high frame rate 25FPS output to ensure the capture of delicate and smooth images.
🚀 Strong performance:
IMX577 sensor supports high-sensitivity and low-noise imaging, with excellent performance, providing clear images even in low-light environments.
Built-in HDR function to adapt to strong light contrast scenes.
🔗 Flexible and easy to integrate:
Modular design
Suitable for multiple scenarios such as smart hardware, security monitoring, vehicle-mounted imaging, industrial vision, etc.
Compression : MJPEG / YUY2(YUYV) / H.265 / H.265+
Why H.265+?
H.265+ is an enhanced video compression standard optimized for surveillance, offering superior efficiency by reducing bandwidth and storage needs while maintaining high image quality. It mi
