SPECIFICATIONS

Application: Hospital ICU Home Clinical
Brand Name: Sinohero
Certification: CE
Display: 3.5" TFT Color LCD Display
Hign-concerned Chemical: None
Is Batteries Included: Yes
Model Number: SM50
Origin: China
PR: 20~254bpm
Parameters: SPO2 NIBP TEMP PR

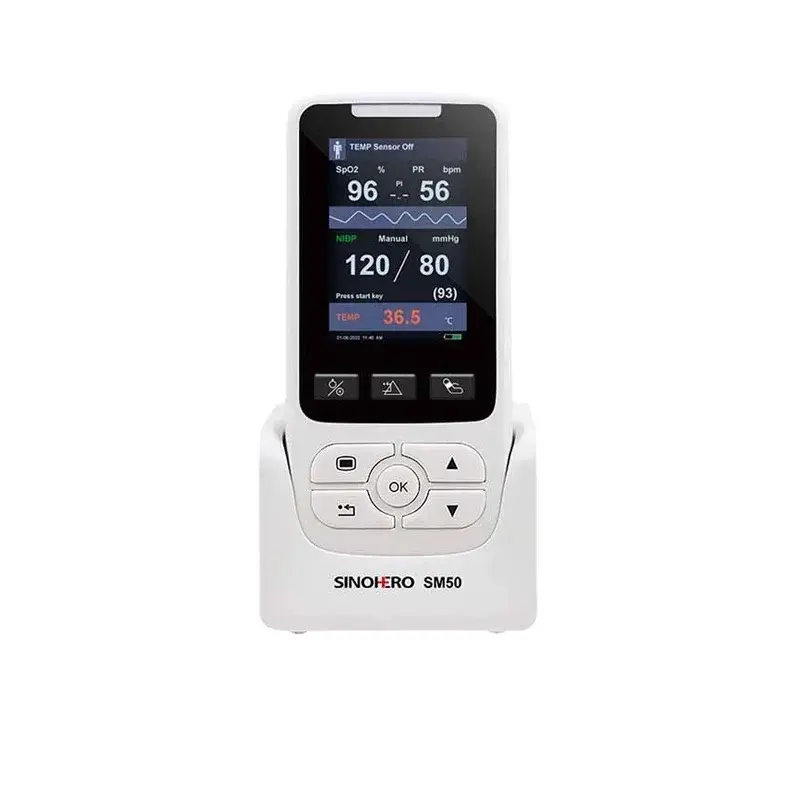

Product name: Handheld Vital Signs Monitor Multi-parameters Patient monitor
SPO2 Range: 0%~100%
Temperature Measurement Range: 0°C-50°C
Type: Examination Therapy Equipments
Use for: Adult Neonatal and Pediatric


 we will send the package as your choice,Thank you for your understanding!!


Introduction:
SM50 is a multi-functional hand-held patient monitor that can monitor SpO2, NIBP TEMP PR at the same time. the device is widely applicable to hospital wards, community clinics, Fimily and other medical institutions.

SM50-VET is a multi-functional hand-held Veterinary patient monitor that can monitor SpO2, NIBP TEMP PR at the same time. the device is widely applicable to Animals hospital wards, Pet clinics, Fimily and other Veterinary medical institutions.

Features
●Ergonomic design for point of care
●Suitable for All Animals
●High resolution 3.5." color LCD display
●Selectable working modes: spot check and continuous monitoring
●Classic SpO2/TEMP/NIBP measurement availble
●Upto 24 hours long battery life with recharge seat

Performance
Standard SpO2
●Accuracy:70% to 100%: +2%, unspecified 0% to 69%:
●Range:0-100%
●Alarm Range:Same as display range, alarm limit setup length is 1%

PR
●Range:20bpm ~ 254bpm
●Alarm Range:Same as display range, alarm limit setup length is 1bpm
●Refreshing Rate:About 1 second
●Accuracy:+3 bpm
●PR Average: 8 second
●Pitch Tone:Yes

TEMP
●Accuracy:+0.2°C (0°C~ 50C)
●Range:0°C ~ 50°C
●Alarm Range:Upper limit 0.1C ~ 50.0C, Lower limit 0.0C~ 49.9C
●Unit:°C or°F
●Alarm Delay Time:<10s

Battery
●Input Power:100-240 VAC,0.4A,50/60Hz,+10%
●Type:Lithium ion .
●Capacity:3.7V/4000mAh
●Working Time:Brand new battery with fully charged≥24 hours
●Charging Time:Around 8 hours

I/O
●Display:3.5" LCD 480*320 pixels
●Buttons:3 shortcut keys, 5 function keys

Communication Interface
USB .

Environmental Specification
●Temperature:0C~ 40C
●Humidity:15% ~ 80%, Non - Condensing
●Patients Range:Neonatal, Pediatric, Adult

NIBP
●Method of Measurement:Oscillation
●The Measured Parameters:SBP, DBP, MAP
●Unit:mmHg or kPa
●Operating Mode:Manual, automatic, continuous
●SBP Range:
Adult(30 mmHg ~ 270mmHg),Child(30 mmHg ~ 230mmHg)
●DBP Range:
Adult(10 mmHg ~ 220mmHg),Child(10 mmHg ~ 165mmHg)
●MAP Range:
Adult(10 mmHg ~ 240mmHg),Child(10 mmHg ~ 175mmHg)
●Accuracy:+5mmHg or +4%, whichever is the greater
●Range:Same as display range, alarm limit setup length is 1mmHg
●Alarm Delay Time:<10s
●Cuff Pressure Range:0 mmHg ~ 300 mmHg
●Cuff Inflation Speed:Cuff Inflation Speed≤50mmHg/s
●Static Pressure Measurement Error:+3mmHg (not up to over pressure protection)
●Display Resolution:1mmHg
Physical characteristic:
●Size:175mm(h)X85mm(w)x32mm(d)
●Weight: 370g
